Plumbing Requirements for Installing a Wall-Hung Toilet

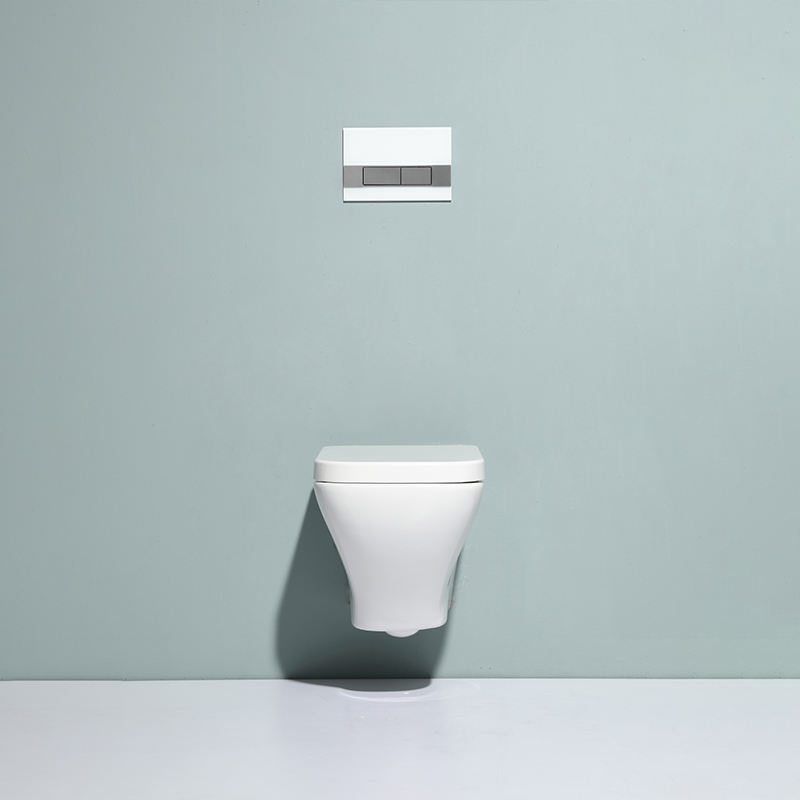

Installing a wall-hung toilet offers a modern and space-saving solution for contemporary bathrooms. However, successful installation depends heavily on correct plumbing preconditions. Here’s a detailed guide on what needs to be prepared in terms of pipework to support a ceramic wall hung toilet that is anti-stain, stable and durable, and ensures quiet and powerful flushing.

1. Understanding the In-Wall Cistern System

Unlike floor-mounted toilets, wall-hung models require a concealed cistern system built inside the wall. This system demands a robust frame to support the toilet's weight, and the plumbing must be planned accordingly.

• The frame typically connects to a rear discharge pipe, making alignment with the sewer line critical.

• Ensure access to maintenance panels after installation, particularly for cistern repairs.

To maintain water efficiency and ease of maintenance, choose high-quality systems that integrate well with ceramic wall hung toilet models.

2. Pipe Positioning and Sizing

Proper alignment of water inlet and waste outlet pipes is crucial:

• Waste outlet pipe: Must be positioned precisely within the wall cavity, typically with a 90mm-110mm diameter.

• Water supply pipe: Usually runs from the top or side and connects to the concealed cistern’s inlet.

The plumbing setup must accommodate quiet and powerful flushing systems to reduce noise and ensure reliable performance. Pipe insulation can help reduce flushing noise further.

3. Wall Cavity Requirements

The wall cavity must be deep enough to accommodate the steel frame and plumbing. A minimum of 150mm-200mm depth is usually required.

• Check that the wall structure can support the weight of the ceramic wall hung toilet, which can be up to 400kg with user.

• Use moisture-resistant materials around plumbing areas to prevent damage.

This also ensures the system remains anti-stain and stable and durable, reducing long-term maintenance.

4. Ventilation and Drainage Planning

Ventilation is critical to avoid drain odors and pressure imbalance:

• Include a vent pipe connected to the drain line, ensuring consistent air pressure.

• Drainage slope must be adequate (1-2%) to prevent water stagnation.

These measures improve water efficiency and flushing power.

5. Final Recommendations

Before installation, always conduct pressure and leakage tests. Coordinate with professionals to avoid misalignment or weak structural support.

The right planning and professional installation will result in a space-saving, sleek, and high-performing bathroom fixture that remains anti-stain, quiet and powerful flushing, and stable and durable over time.
